A. Technical parameters
| Model NO. | ESHX3601-320240TBBIG01-RF | Type | LCM |
| Response Time | 30ms | Viewing Angle | IPS |
| Display Technology | TFT | DOT-Matrix Graphic LCD Module Type | Row/Column-Driven Control Type |
| LCD Drive Mode | Multiplex Drive LCD Module | Customized | Customized |
| Interface | RGB | Typical Luminance | 900CD/M2 |
| LED Life Time | 30000 - - Hrs | Color | 16.7m Colors |
| Transport Package | Carton | Specification | Glass electronic products of 3.6" display |
| Trademark | HuaXin | Origin | China |
B. Features
| PARAMETER | VALUE |
| Screen size (diagonal) | 3.6inch |
| Display resolution | 544 x 3 x 506 WQXGA Pixels |
| Surface Treatment | Normal |
| Pixel Arrangement | Pixels RGB stripe arrangement |
| Display colors | 16.7M |
| Operating temperature range | -20 to +70 ºC |
| Storage temperature | -30 to +80 ºC |

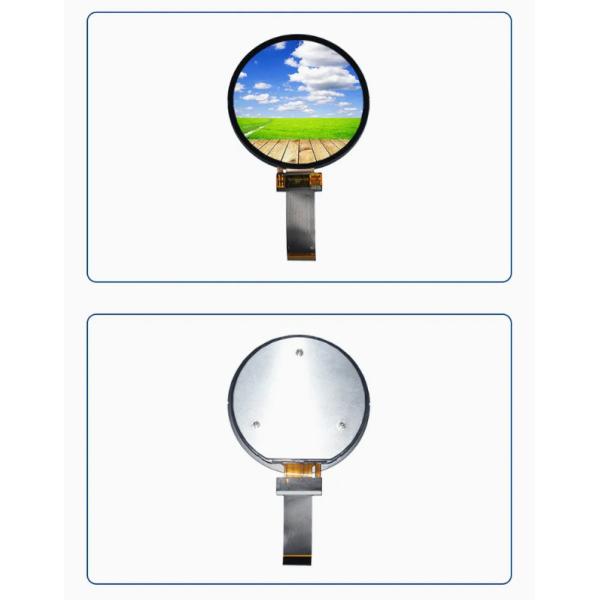

C. Product Picture
D. Drawing
E: TFT Product Knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
